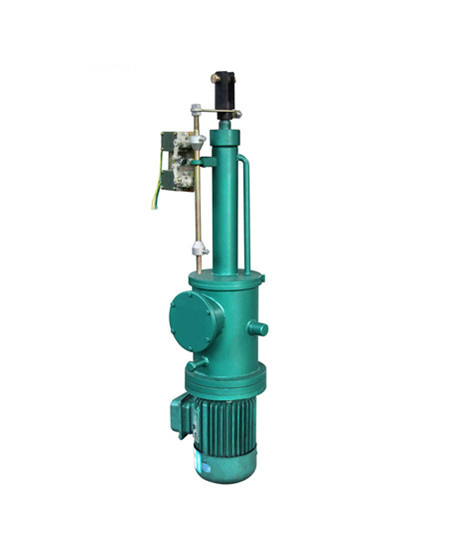

DYTZ型整体直式电液推杆技术参数选型表
|
型号 |
额定输出力（Kgf） |
额定速度（mm/s）（特殊速度可定制） |
电机型号 |
行程制造范围 |
速度制造范围 |
|||
|
推力 |
拉力 |
推速 |
拉速 |
（kw） |
（mm） |
（mm） |
||
|
DYTZ |
450 |
450 |
300 |
45/70/115/160 |
65/100/145/200 |
0.55/0.75/0.75/1.1 |
5-1000 |
5-250 |
|
750 |
750 |
500 |
30/45/70/100 |
43/65/100/165 |
0.55/0.75/1.1/1.1 |
5-1500 |
5-170 |
|
|
1000 |
1000 |
700 |
30/45/70/100 |
43/65/100/145 |
0.75/1.1/1.5/2.2 |
5-1500 |
5-170 |
|
|
1750 |
1750 |
1300 |
30/45/70/100 |
43/65/100/145 |
0.75/1.5/2.2/3.0 |
5-1500 |
5-170 |
|
|
2500 |
2500 |
1900 |
24/36/60/97 |
36/53/90/144 |
1.1/1.5/2.2/3.0 |
5-2000 |
5-150 |
|
|
3000 |
3000 |
2200 |
18/27/45/70 |
27/40/68/108 |
1.1/1.5/2.2/3.0 |
5-2500 |
5-110 |
|
|
4000 |
4000 |
3000 |
14/35/55/70 |
21/53/85/108 |
1.1/2.2/3.0/4.0 |
5-2500 |
5-85 |
|
|
5000 |
5000 |
3800 |
18/30/48/60 |
23/39/63/78 |
1.5/2.2/3.0/4.0 |
5-2500 |
5-75 |
|
|
6000 |
6000 |
4500 |
18/30/48/60 |
23/39/63/78 |
1.5/3.0/4.0/5.5 |
5-3000 |
5-75 |
|
|
8000 |
8000 |
6500 |
10/18/25/38 |
13/23/33/47 |
1.5/2.2/3.0/4.0 |
5-3000 |
5-50 |
|
|
10000 |
10000 |
8100 |
8/14/20/30/39 |
10/17/25/37/48 |
1.5/2.2/3.0/4.0/5.5 |
5-3000 |
5-39 |
|
|
15000 |
15000 |
11500 |
7/12/19/24/30 |
8/14/22/28/36 |
1.5/3.0/4.0/5.5/7.5 |
5-3000 |
5-30 |
|
|
20000 |
20000 |
16000 |
5.5/9.5/15/19/23 |
6.5/11/18/22/27 |
2.2/3.0/4.0/5.5/7.5 |
5-3000 |
5-23 |
|
